The NSI7258-Q1 is an automotive grade single-channel solid-state relay (SSR), which is pin-compatible for popular photo MOSFET. The SSR turns ON with a minimum input current of 5.5mA. It can conduct 30mA current at ON state, with resistance less than 250Ω. The SSR turns off with an input voltage of 0.5V or less. It can withstand 1000V voltage at OFF state, with less than 1μA leakage current. The NSI7258-Q1 uses NOVOSENSE’s high reliability isolation technology. While the input circuit imitates the characters of LEDs, it has performance advantages compared to standard photo MOSFET, including better reliability and aging performance, higher working temperature, shorter turn-on and turn-off delay. As a result, the NSI7258-Q1 is suitable to replace photo MOSFET in high reliability system.
Product Features
? AEC Q-100 Qualified for Grade 1: TA from –40 °C to 125 °C
? Normally open (1-Form-A) solid state relay
? Up to 5000Vrms Insulation voltage
? Breakdown voltage: 1700V
? OFF state leakage current: <1μA at 1000V
? ON state resistance: <250Ω at 10mA load current
? Input forward threshold current: <5.5mA
? Turn on time: <0.3ms
? Turn off time: <0.05ms
? RoHS-compliant Packages: SOW12
? Creepage and clearance ≥ 8mm (input-output)
? Creepage and clearance ≥ 5.91mm (between drain pins of MOSFETs)
? Meets CISPR32 Class B and CISPR 25 Class 5 EMI limits without ferrite beads on a 2-layer PCB
Safety Certificate
? UL recognition: up to 5000Vrms for 1 minute per UL1577
? CQC certification per GB4943.1-2011
? CSA component notice 5A approval IEC60950-1 standard
? DIN VDE V 0884-11:2017-01
Application
? Battery Management System (BMS)
? Electric Vehicle Chargers

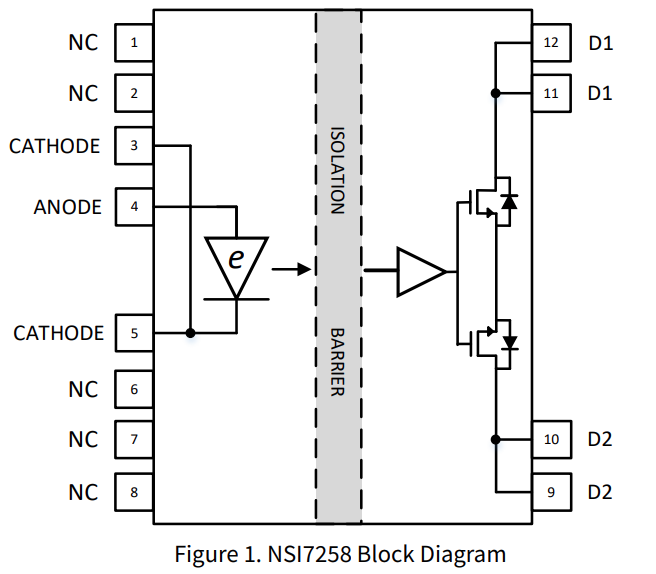

Functional Block Diagram
