NSIP83086 is a high-reliability full-duplex isolated RS-485 transceiver with integrated isolated DC-DC power supply. Isolated DC-DC power supply can be based on on-chip transformer, the feedback PWM signal is transmitted to the primary side by a digital isolator based on NOVOSENSE capacitance isolation technology. Highly integrated solutions simplify system design and improve reliability. NSIP83086 is UL1577-qualified for safety and supports 5kVrms insulation voltage. The bus pins on the bus side of the NSIP83086 is designed with ±8kV ESD protection to GND2 at system level. This component is designed with a fail-safe circuit that ensures the receiver output is logic high when the receiver input is disconnected or shorted. It features a receiver input impedance of 1/8 unit load, allowing up to 256 transceivers to be connected to the bus.
Product Features
? Insulation voltage up to 5000Vrms
? Integrated isolated DC-DC power supply provided
? 1.8V~5V MCU supported in I/O voltage range
? Power supply voltage:
oVDD: 4.5V to 5.5V
oVDDL: 1.8V to 5.5V
? Over current and over heat protection
? High CMTI:150kV/us
? Data transmission rate: 16Mbps
? Supporting 256 transceivers
? High system-level EMC performance:
o Bus pins conform to IEC61000-4-2±8kV ESD
? Isolated grid life: >60 years
? Operation temperature: -40℃~105℃

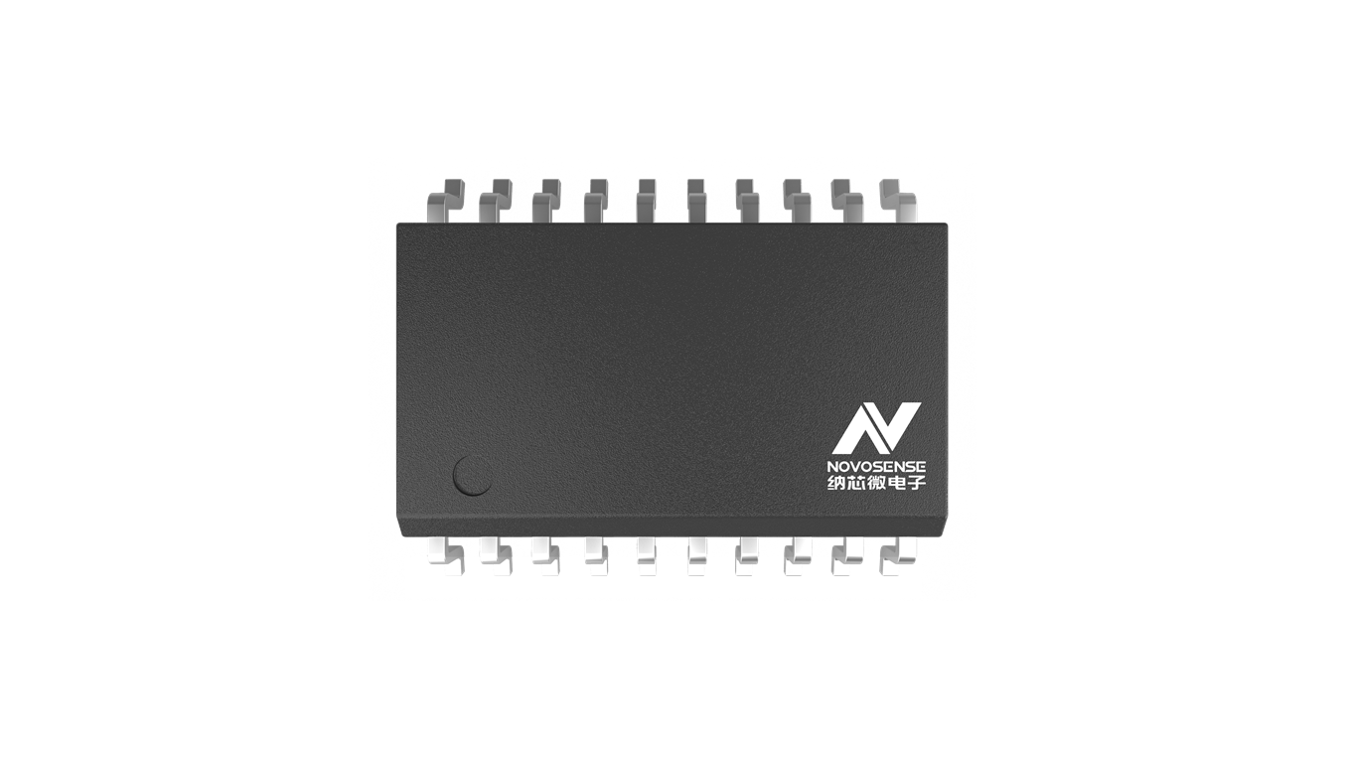

? RoHS compliant package: SOW20
Safety Certificate
? UL1577 qualified: 5kVrms for 1 min.
? CQC qualified: Conform to GB4943.1 -2011
? CSA qualified: Components conform to 5A
? VDE qualified: DIN VDE V 0884-11:2017-1
Application
? Industrial automation system
? Isolated RS-485 communication system
? Smart power metering and water meters
? Security and surveillance systems
Functional Block Diagram
